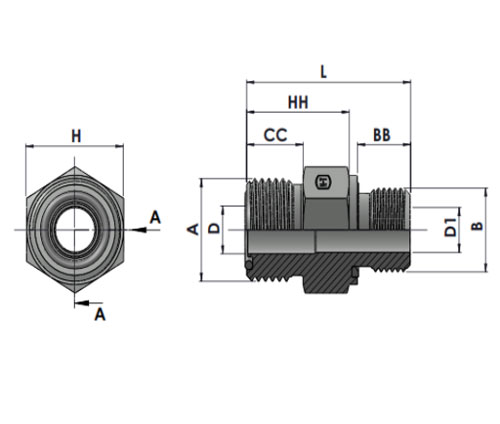

HTFS7701 MFS-MMED Straight


  • Description
  • Additional Information
Tube O.D. A
THREAD
B
THREAD
L
LENGTH
CC
LENGTH
HH
LENGTH
BB
LENGTH
D
DRILL
D1
DRILL
H
Hex
Part Number Weight Working pressure in Bar
1/4" 9/16"-18 M10X1.0 27.30 9.80 17.80 8.00 4.40 4.00 17.00 HTFS7701-04-10 0.032 413
1/4" 9/16"-18 M12X1.5 31.80 9.80 17.80 12.00 4.40 6.00 19.00 HTFS7701-04-12 0.046 413
1/4" 9/16"-18 M14X1.5 31.80 9.80 17.80 12.00 4.40 7.00 19.00 HTFS7701-04-14 0.046 413
3/8" 11/16"-16 M18X1.5 34.40 11.20 19.90 12.00 6.70 11.00 27.00 HTFS7701-06-18 0.102 413
5/8" 1"-14 M18X1.5 41.60 15.50 27.10 12.00 12.30 11.00 27.00 HTFS7701-10-18 0.123 413
5/8" 1"-14 M22X1.5 44.10 15.50 27.10 14.00 12.30 14.00 27.00 HTFS7701-10-22 0.130 1413
1" 1-7/16"-12 M33X2.0 52.80 17.50 31.80 18.00 20.60 23.00 41.00 HTFS7701-16-33 0.360 413
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HTFS7701-04-10
Steel ,Zinc nickel plated  ZiNi HTFS7701-04-10-ZiNi
Stainless Steel-SS316 Ti SST HTFS7701-04-10-SST
Stainless Steel-SS316  SS316 HTFS7701-04-10-SS
Stainless Steel-SS304 SS304 HTFS7701-04-10-S
