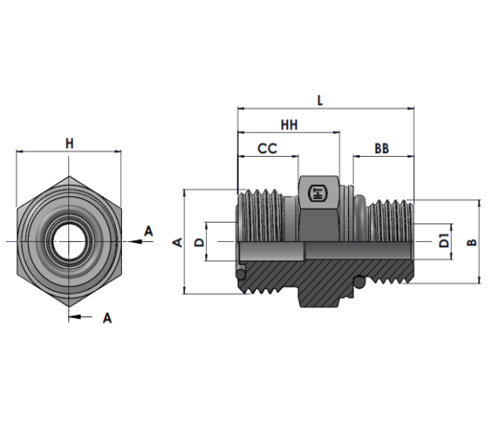

| Tube O.D. | A THREAD |
B THREAD |
L LENGTH |
CC LENGTH |
HH LENGTH |
BB LENGTH |
D DRILL |
D1 DRILL |
H Hex |
Part Number | Working pressure in Bar |
| 6 | 9/16"-18 | M10X1.0 | 28.90 | 9.80 | 17.80 | 9.50 | 4.40 | 3.00 | 17.00 | HTFS7640-04-10-O | 413 |
| 6 | 9/16"-18 | M12X1.5 | 31.30 | 9.80 | 17.80 | 11.00 | 4.40 | 4.00 | 17.00 | HTFS7640-04-12-O | 413 |
| 6 | 9/16"-18 | M14X1.5 | 31.30 | 9.80 | 17.80 | 11.00 | 4.40 | 6.00 | 19.00 | HTFS7640-04-14-O | 413 |
| 10 | 11/16"-16 | M12X1.5 | 33.40 | 11.20 | 19.90 | 11.00 | 6.70 | 4.00 | 19.00 | HTFS7640-06-12-O | 413 |
| 10 | 11/16"-16 | M14X1.5 | 33.40 | 11.20 | 19.90 | 11.00 | 6.70 | 6.00 | 19.00 | HTFS7640-06-14-O | 413 |
| 10 | 11/16"-16 | M16X1.5 | 34.90 | 11.20 | 19.90 | 12.50 | 6.70 | 7.00 | 22.00 | HTFS7640-06-16-O | 413 |
| 10 | 11/16"-16 | M18X1.5 | 36.40 | 11.20 | 19.90 | 14.00 | 6.70 | 9.00 | 24.00 | HTFS7640-06-18-O | 413 |
| 10 | 11/16"-16 | M22X1.5 | 37.40 | 11.20 | 19.90 | 15.00 | 6.70 | 12.00 | 27.00 | HTFS7640-06-22-O | 413 |
| 12 | 13/16"-16 | M14X1.5 | 36.10 | 12.80 | 22.60 | 11.00 | 9.60 | 6.00 | 22.00 | HTFS7640-08-14-O | 413 |
| 12 | 13/16"-16 | M16X1.5 | 37.60 | 12.80 | 22.60 | 12.50 | 9.60 | 7.00 | 22.00 | HTFS7640-08-16-O | 413 |
| 12 | 13/16"-16 | M18X1.5 | 39.10 | 12.80 | 22.60 | 14.00 | 9.60 | 9.00 | 24.00 | HTFS7640-08-18-O | 413 |
| 12 | 13/16"-16 | M22X1.5 | 40.10 | 12.80 | 22.60 | 15.00 | 9.60 | 12.00 | 27.00 | HTFS7640-08-22-O | 413 |
| 12 | 13/16"-16 | M26X1.5 | 12.80 | 22.60 | 9.60 | 32.00 | HTFS7640-08-26-O | 413 | |||
| 12 | 13/16"-16 | M27X2.0 | 43.60 | 12.80 | 22.60 | 18.50 | 9.60 | 15.00 | 32.00 | HTFS7640-08-27-O | 413 |
| 12 | 13/16"-16 | M33X2.0 | 44.10 | 12.80 | 22.60 | 18.50 | 9.60 | 20.00 | 41.00 | HTFS7640-08-33-O | 413 |
| 16 | 1"-14 | M18X1.5 | 43.60 | 15.50 | 27.10 | 14.00 | 12.30 | 9.00 | 27.00 | HTFS7640-10-18-O | 413 |
| 16 | 1"-14 | M22X1.5 | 44.60 | 15.50 | 27.10 | 15.00 | 12.30 | 12.00 | 27.00 | HTFS7640-10-22-O | 413 |
| 16 | 1"-14 | M27X2.0 | 48.10 | 15.50 | 27.10 | 18.50 | 12.30 | 15.00 | 32.00 | HTFS7640-10-27-O | 413 |
| 16 | 1"-14 | M33X2.0 | 48.60 | 15.50 | 27.10 | 18.50 | 12.30 | 20.00 | 41.00 | HTFS7640-10-33-O | 413 |
| 20 | 1-3/16"-12 | M22X1.5 | 47.60 | 17.00 | 30.10 | 15.00 | 15.50 | 12.00 | 32.00 | HTFS7640-12-22-O | 413 |
| 20 | 1-3/16"-12 | M27X2.0 | 51.10 | 17.00 | 30.10 | 18.50 | 15.50 | 15.00 | 32.00 | HTFS7640-12-27-O | 413 |
| 20 | 1-3/16"-12 | M33X2.0 | 51.60 | 17.00 | 30.10 | 18.50 | 15.50 | 20.00 | 41.00 | HTFS7640-12-33-O | 413 |
| 25 | 1-7/16"-12 | M33X2.0 | 53.30 | 17.50 | 31.80 | 18.50 | 20.60 | 20.00 | 41.00 | HTFS7640-16-33-O | 413 |
| 30 | 1-11/16"-12 | M38X2.0 | 17.50 | 33.80 | 26.00 | 50.00 | HTFS7640-20-38-O | 275 | |||
| 30 | 1-11/16"-12 | M42X2.0 | 55.80 | 17.50 | 33.80 | 19.00 | 26.00 | 26.00 | 50.00 | HTFS7640-20-42-O | 275 |
CALL US : +91-22-4097 1900
Body
Assembly
HTFS7640-O MFS-MMORB Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS7640-04-10-O | |
| Steel ,Zinc nickel plated | ZiNi | HTFS7640-04-10-O-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS7640-04-10-O-SST |
| Stainless Steel-SS316 | SS316 | HTFS7640-04-10-O-SS |
| Stainless Steel-SS304 | SS304 | HTFS7640-04-10-O-S |
