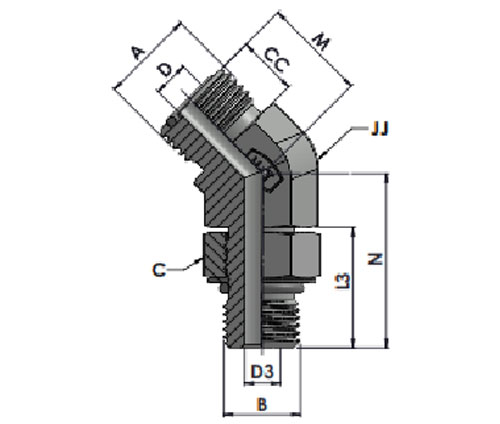

HTFS7300-NWO MFS-MMAORB 45° Elbow


  • Description
  • Additional Information
Tube O.D. A
THREAD
B
THREAD
M
LENGTH
N
LENGTH
CC
LENGTH
L3
LENGTH
D
DRILL
D3
DRILL
JJ
Hex
C
Hex
Part Number Torque
N-m
Working pressure in Bar
1/4" 9/16"-18 M12X1.5-6g 16.00 30.00 9.80 21.00 4.40 4.00 14.00 17.00 HTFS7300-04-12-NWO 35-38.5 413
1/4" 9/16"-18 M14X1.5-6g 17.50 31.50 9.80 21.00 4.40 6.00 17.00 19.00 HTFS7300-04-14-NWO 45-49.50 413
3/8" 11/16"-18 M16X1.5-6g 19.00 33.50 11.20 23.00 6.70 7.00 17.00 22.00 HTFS7300-06-16-NWO 55-60.50 413
1/2" 13/16"-16 M14X1.5-6g 20.50 32.00 12.80 21.00 9.60 6.00 19.00 19.00 HTFS7300-08-14-NWO 45-49.50 413
1/2" 13/16"-16 M18X1.5-6g 20.50 37.00 12.80 26.00 9.60 9.00 19.00 24.00 HTFS7300-08-18-NWO 70-77 413
5/8" 1"-14UNS M22X1.5-6g 23.50 44.00 17.50 27.50 12.30 12.00 24.00 27.00 HTFS7300-10-22-NWO 100-110 413
3/4" 1-3/16"-12 M27X2.0-6g 26.00 50.50 17.50 33.50 15.50 15.00 27.00 32.00 HTFS7300-12-27-NWO 170-187 413
1" 1-7/16"-12 M33X2.0-6g 30.00 52.50 17.50 33.50 20.60 20.00 36.00 41.00 HTFS7300-16-33-NWO 310-341 345
1-1/4" 1-11/16"-12 M42X2.0-6g 32.00 54.00 17.50 34.50 26.00 26.00 41.00 50.00 HTFS7300-20-42-NWO 330-363 275
1-1/2" 2"-12 M48X2.0-6g 37.00 56.50 17.50 38.00 32.00 32.00 50.00 55.00 HTFS7300-24-48-NWO 420-462 207
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HTFS7300-04-12-NWO
Steel ,Zinc nickel plated  ZiNi HTFS7300-04-12-NWO-ZiNi
Stainless Steel-SS316 Ti SST HTFS7300-04-12-NWO-SST
Stainless Steel-SS316  SS316 HTFS7300-04-12-NWO-SS
Stainless Steel-SS304 SS304 HTFS7300-04-12-NWO-S
