| Tube O.D. | A THREAD |
B THREAD |
L LENGTH |
CC LENGTH |
D DRILL |
C Hex |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 9/16"-18 | 7/16"-20 | 27.69 | 9.80 | 4.40 | 17.46 | HTFS6410-04-04 | 14-16 | 413 |
| 1/2" | 13/16"-16 | 3/4"-16 | 34.54 | 12.80 | 9.60 | 26.97 | HTFS6410-08-08 | 43-47 | 413 |
| 1" | 1-3/16"-12 | 1-5/16"-12 | 45.47 | 17.50 | 15.50 | 41.28 | HTFS6410-16-12 | 125-135 | 413 |
| 1" | 1-7/16"-12 | 1-5/16"-12 | 45.72 | 17.50 | 20.60 | 41.28 | HTFS6410-16-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 1-5/8"-12 | 47.24 | 17.50 | 26.00 | 53.97 | HTFS6410-20-20 | 170-190 | 275 |
| 1-1/2" | 2"-12 | 1-7/8"-12 | 47.50 | 17.50 | 32.00 | 63.50 | HTFS6410-24-24 | 200-225 | 275 |
CALL US : +91-22-4097 1900
Body
Assembly

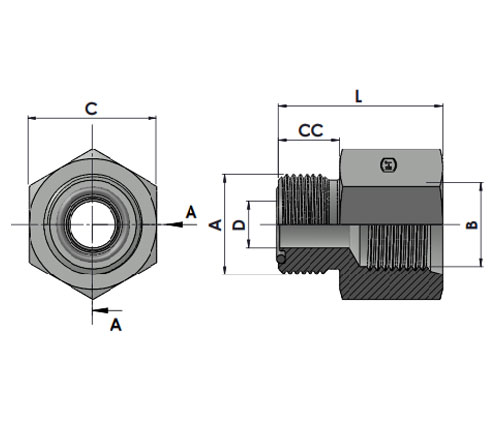

HTFS6410 FORB-MFS Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS6410-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS6410-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS6410-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS6410-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS6410-04-04-S |
