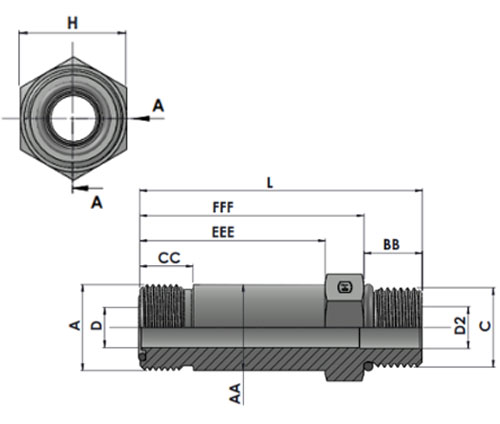

| Tube O.D. | A THREAD |
C THREAD |
L LENGTH |
FFF LENGTH |
EEE LENGTH |
CC LENGTH |
BB LENGTH |
AA DIA |
D DRILL |
D2 DRILL |
H Hex |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 9/16"-18 | 7/16"-20 | 52.70 | 41.70 | 33.80 | 9.80 | 11.00 | 12.14 | 4.40 | 4.40 | 15.88 | HTFS6400-L-04-04-O | 14-16 | 413 |
| 3/8" | 11/16"-18 | 9/16"-18 | 57.70 | 45.70 | 37.00 | 11.20 | 12.00 | 15.09 | 6.70 | 7.50 | 19.05 | HTFS6400-L-06-06-O | 24-27 | 413 |
| 1/2" | 13/16"-16 | 3/4"-16 | 67.80 | 53.80 | 44.50 | 12.80 | 14.00 | 18.26 | 9.60 | 9.90 | 22.22 | HTFS6400-L-08-08-O | 43-47 | 413 |
| 5/8" | 1"-14 | 7/8"-14 | 79.50 | 63.50 | 52.60 | 15.50 | 16.00 | 22.76 | 12.30 | 12.30 | 26.99 | HTFS6400-L-10-10-O | 60-68 | 413 |
| 3/4" | 1-3/16"-12 | 1-1/16"-12 | 95.50 | 77.00 | 64.00 | 17.50 | 18.50 | 27.15 | 15.50 | 15.50 | 31.75 | HTFS6400-L-12-12-O | 90-95 | 413 |
| 1" | 1-7/16"-12 | 1-5/16"-12 | 105.10 | 86.60 | 72.90 | 17.50 | 18.50 | 33.50 | 20.60 | 21.40 | 38.10 | HTFS6400-L-16-16-O | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 1-5/8"-12 | 120.90 | 102.40 | 83.30 | 17.50 | 18.50 | 38.95 | 26.00 | 27.40 | 44.45 | HTFS6400-L-20-20-O | 170-190 | 275 |
| 1-1/2" | 2"-12 | 1-7/8"-12 | 133.60 | 115.10 | 97.00 | 17.50 | 18.50 | 47.78 | 32.00 | 33.30 | 53.98 | HTFS6400-L-24-24-O | 200-225 | 275 |
CALL US : +91-22-4097 1900
Body
Assembly
HTFS6400-L-O MFS-MORB Straight Long
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS6400-L-04-04-O | |
| Steel ,Zinc nickel plated | ZiNi | HTFS6400-L-04-04-O-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS6400-L-04-04-O-SST |
| Stainless Steel-SS316 | SS316 | HTFS6400-L-04-04-O-SS |
| Stainless Steel-SS304 | SS304 | HTFS6400-L-04-04-O-S |
