HY-TECH USA INC
| SR. NO. |

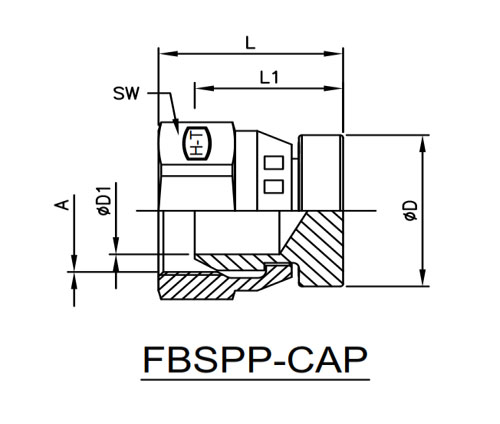

PART NO. | ǾD | L | L1 | A THREAD BSPP (INT) |
ǾD1 | SW |
| 01 | HT9644-C-04 | 15.0 | 21.30 | 17.00 | 1/4"-19BSPP | 4.7 | 19.0 |
| 02 | HT9644-C-06 | 17.0 | 22.30 | 15.80 | 3/8"-19BSPP | 7.9 | 22.0 |
| 03 | HT9644-C-08 | 22.0 | 26.30 | 18.60 | 1/2"-14BSPP | 11.1 | 27.0 |
| 04 | HT9644-C-10 | 27.0 | 26.60 | 17.10 | 5/8"-14BSPP | 14.3 | 30.0 |
| 05 | HT9644-C-12 | 30.0 | 28.05 | 19.00 | 3/4"-14BSPP | 16.7 | 32.0 |
| 06 | HT9644-C-16 | 36.0 | 34.00 | 23.50 | 1"-11BSPP | 22.2 | 41.0 |
ALL REQUIREMENT AS PER ISO8434
ALL DIMENSIONS ARE IN MM
