HY-TECH USA INC

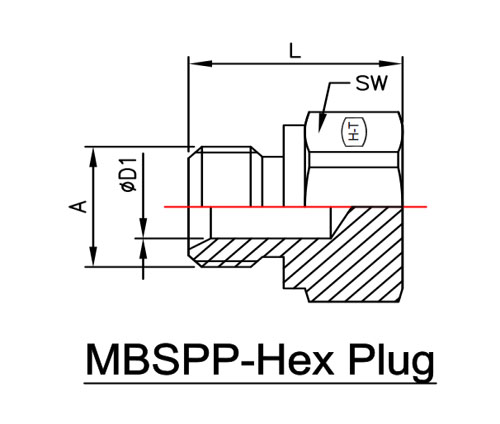

| SR. NO. |
PART NO. | SW | L | A THREAD BSPP |
ĮžD1 |
| 01 | HT9522-P-02 | 14.0 | 14.00 | 1/8"-28BSPP | 3.50 |
| 02 | HT9522-P-04 | 19.0 | 19.00 | 1/4"-19BSPP | 4.70 |
| 03 | HT9522-P-06 | 22.0 | 21.00 | 3/8"-19BSPP | 7.90 |
| 04 | HT9522-P-08 | 27.0 | 24.00 | 1/2"-14BSPP | 11.10 |
| 05 | HT9522-P-10 | 30.0 | 27.00 | 5/8"-14BSPP | 14.30 |
| 06 | HT9522-P-12 | 32.0 | 27.00 | 3/4"-14BSPP | 16.70 |
| 07 | HT9522-P-16 | 41.0 | 30.00 | 1"-11BSPP | 22.20 |
| 08 | HT9522-P-20 | 50.0 | 39.00 | 1-1/4"-11BSPP | 28.60 |
| 09 | HT9522-P-24 | 55.0 | 43.00 | 1-1/2"-11BSPP | 33.30 |
ALL REQUIREMENT AS PER ISO8434
ALL DIMENSIONS ARE IN MM
