HY-Tech
  • Conversion Fittings
  • Elbow
  • HT7204
Product
HY-Tech Engineers
Assembly
HY-Tech Engineers

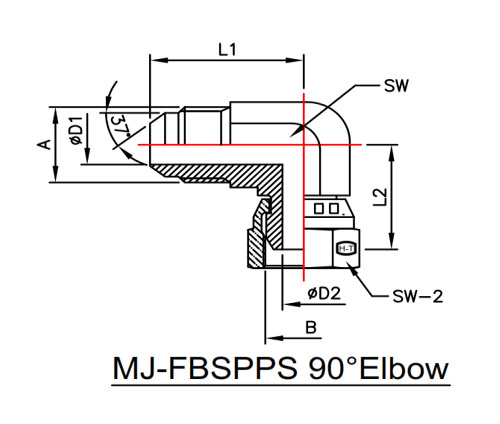

HT7204-00-00 - MJ-FBSPPS 90° ELBOW


SR.
NO.
PART NO. SW L1 A
JIC THREAD
ǾD1 L2 B
BSPP THREAD (INT)
ǾD2 SW-2
01 HT7204-04-04 14.00 22.60 7/16"-20UNF 4.40 26.1 1/4"-19BSPP 4.50 19.00
02 HT7204-06-06 19.00 26.90 9/16"-18UNF 7.50 27.0 3/8"-19BSPP 7.10 22.00
03 HT7204-08-06 19.00 31.80 3/4"-16UNF 9.90 27.0 3/8"-19BSPP 7.10 22.00
04 HT7204-08-08 22.00 31.80 3/4"-16UNF 9.90 32.3 1/2"-14BSPP 9.70 27.00
05 HT7204-12-12 27.00 42.20 1-1/16"-12UN 15.5 33.6 3/4"-14BSPP 15.5 32.00

ALL REQUIREMENT AS PER SAE J514 ,ISO8434 & BS:5200

ALL DIMENSIONS ARE IN MM
