HY-TECH USA INC
| SR. NO. |

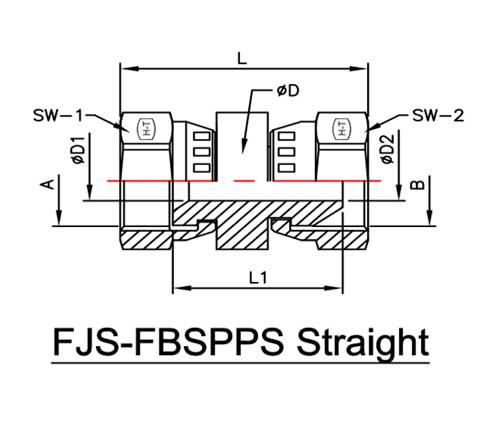

PART NO. | L | ǾD | L1 | SW-1 | A UNF THREAD (INT) |
ǾD1 | SW-2 | B BSPP THREAD (INT) |
ǾD2 |
| 01 | HT7023-04-04 | 41.80 | 17.00 | 27.90 | 14.00 | 7/16"-20UNF-2B | 4.40 | 19.00 | 1/4"-14BSPP | 4.50 |
| 02 | HT7023-04-06 | 42.90 | 20.00 | 28.20 | 14.00 | 7/16"-20UNF-2B | 4.40 | 22.00 | 3/8"-19BSPP | 7.10 |
| 03 | HT7023-06-04 | 44.30 | 17.00 | 29.60 | 19.00 | 9/16"-18UNF-2B | 7.50 | 19.00 | 1/4"-14BSPP | 4.50 |
| 04 | HT7023-06-06 | 45.40 | 20.00 | 29.90 | 19.00 | 9/16"-18UNF-2B | 7.50 | 22.00 | 3/8"-19BSPP | 7.10 |
| 05 | HT7023-06-08 | 48.40 | 25.00 | 32.40 | 19.00 | 9/16"-18UNF-2B | 7.50 | 27.00 | 1/2"-14BSPP | 9.70 |
| 06 | HT7023-08-06 | 47.80 | 20.00 | 31.10 | 22.00 | 3/4"-16UNF-2B | 9.90 | 22.00 | 3/8"-19BSPP | 7.10 |
| 07 | HT7023-08-08 | 49.80 | 25.00 | 32.60 | 22.00 | 3/4"-16UNF-2B | 9.90 | 27.00 | 1/2"-14BSPP | 9.70 |
| 08 | HT7023-08-12 | 56.30 | 30.00 | 36.90 | 22.00 | 3/4"-16UNF-2B | 9.90 | 32.00 | 3/4"-14BSPP | 15.50 |
| 09 | HT7023-10-10 | 56.10 | 28.00 | 33.70 | 27.00 | 7/8"-14UNF-2B | 12.30 | 30.00 | 5/8"-14BSPP | 12.00 |
| 10 | HT7023-12-12 | 60.40 | 30.00 | 37.40 | 32.00 | 1-1/16"-12UN-2B | 15.50 | 32.00 | 3/4"-14BSPP | 15.50 |
| 11 | HT7023-12-16 | 64.20 | 39.00 | 39.40 | 32.00 | 1-1/16"-12UN-2B | 15.50 | 41.00 | 1"-11BSPP | 20.40 |
| 12 | HT7023-16-12 | 63.10 | 39.00 | 39.30 | 41.00 | 1-5/16"-12UN-2B | 21.40 | 32.00 | 3/4"-14BSPP | 15.50 |
| 13 | HT7023-16-16 | 68.90 | 39.00 | 43.30 | 41.00 | 1-5/16"-12UN-2B | 21.40 | 41.00 | 1"-11BSPP | 20.40 |
ALL REQUIREMENT AS PER SAE J514 & BS:5200
ALL DIMENSIONS ARE IN MM
