HY-Tech
  • Conversion Fittings
  • Straight Series
  • HT7002
Product
HY-Tech Engineers
Assembly
HY-Tech Engineers

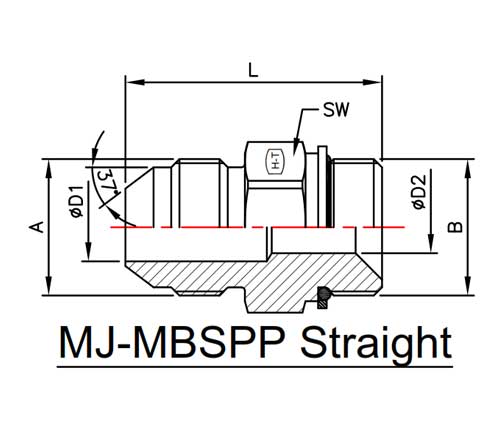

HT7002-00-00-ORR - MJMBSPP STRAIGHT


SR.
NO.
PART NO. SW L A
JIC THREAD
ǾD1 B
BSPP THREAD
ǾD2
01 HT7002-04-04-ORR 19.0 32.0 7/16"-20UNF 4.40 1/4"-19BSPP 4.70
02 HT7002-04-06-ORR 22.0 34.0 7/16"-20UNF 4.40 3/8"-19BSPP 7.90
03 HT7002-06-04-ORR 19.0 33.0 9/16"-18UNF 7.50 1/4"-19BSPP 4.70
04 HT7002-06-06-ORR 22.0 34.1 9/16"-18UNF 7.50 3/8"-19BSPP 7.90
05 HT7002-06-08-ORR 27.0 38.0 9/16"-18UNF 7.50 1/2"-14BSPP 12.70
06 HT7002-08-06-ORR 22.0 37.5 3/4"-16UNF 9.90 3/8"-19BSPP 9.50
07 HT7002-08-08-ORR 27.0 41.0 3/4"-16UNF 9.90 1/2"-14BSPP 11.10
08 HT7002-08-12-ORR 32.0 44.7 3/4"-16UNF 9.90 3/4"-14BSPP 16.70
09 HT7002-10-08-ORR 27.0 45.0 7/8"-14UNF 12.30 1/2"-14BSPP 12.70
10 HT7002-10-12-ORR 32.0 49.0 7/8"-14UNF 12.30 3/4"-14BSPP 18.20
11 HT7002-12-08-ORR 27.0 47.0 1-1/16"-12UN 15.50 1/2"-14BSPP 11.10
12 HT7002-12-12-ORR 32.0 52.0 1-1/16"-12UN 15.50 3/4"-14BSPP 18.20
13 HT7002-12-16-ORR 41.0 53.0 1-1/16"-12UN 15.50 1"-11BSPP 22.20
14 HT7002-16-12-ORR 36.0 50.1 1-5/16"-12UN 21.50 3/4"-14BSPP 16.70
15 HT7002-16-16-ORR 41.0 57.1 1-5/16"-12UN 21.50 1"-11BSPP 22.20
16 HT7002-16-24-ORR 55.0 59.0 1-5/16"-12UN 21.50 1-1/2"-11BSPP 33.30

ALL REQUIREMENT AS PER SAE J514 & ISO 6149-3

ALL DIMENSIONS ARE IN MM
