HT6809 MAORB-FJS 90°


  • Description
  • Additional Information

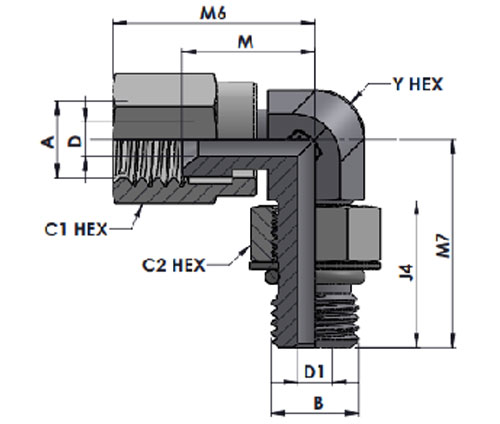

Tube O.D. A
THREAD
B
THREAD
Y Hex  C1
Hex
C2
Hex
M M6  M7 J4 D
DRILL
D1
DRILL
Part Number Torque N-m Working pressure
in Bar
1/4" 7/16"-20UNF-2B 7/16"-20UNF-2A 11.11 14.30 14.28 17.30 25.40 26.10 18.20 4.40 4.40 HT6809-04-04-NWO 15-16 345
3/8" 9/16"-18UNF-2B 9/16"-18UNF-2A 14.28 17.46 17.46 22.00 31.75 31.70 19.10 7.50 7.50 HT6809-06-06-NWO 24-28 345
1/2" 3/4"-16UNF-2B 3/4"-16UNF-2A 19.05 22.22 22.22 20.30 35.00 36.80 21.90 9.90 9.90 HT6809-08-08-NWO 49-53 310
5/8" 7/8"-14UNF-2B 7/8"-14UNF-2A 22.22 25.40 25.40 30.40 41.10 43.10 25.40 12.30 12.30 HT6809-10-10-NWO 77-85 240
3/4" 1-1/16"-12UN-2B 1-1/16"-12UN-2A 26.97 31.75 31.75 34.80 44.40 49.20 21.90 12.30 12.30 HT6809-12-12-NWO 107-119 240
1" 1-5/16"-12UN-2B 1-5/16"-12UN-2A 33.30 38.10 38.10 36.80 50.80 52.00 23.10 21.40 21.40 HT6809-16-16-NWO 147-154 210
1-1/4" 1-5/8"-12UN-2B 1-5/8"-12UN-2A 41.27 47.62 50.80 40.00 58.60 57.10 29.00 27.40 27.40 HT6809-20-20-NWO 172-181 170
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT6809-04-04-NWO
Steel ,Zinc nickel plated  ZiNi HT6809-04-04-NWO-ZiNi
Stainless Steel-SS316 Ti SST HT6809-04-04-NWO-SST
Stainless Steel-SS316  SS316 HT6809-04-04-NWO-SS
Stainless Steel-SS304 SS304 HT6809-04-04-NWO-S
