HT6803 MJ-MJ-MAORB BRANCH TEE


  • Description
  • Additional Information

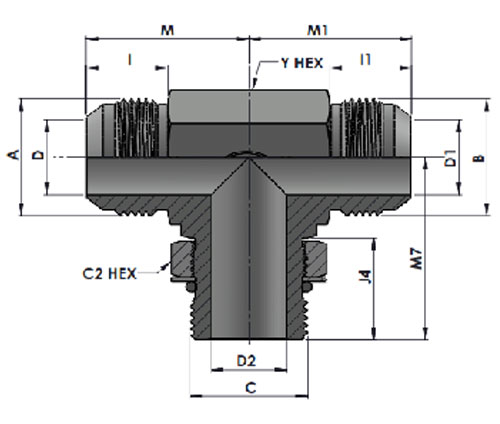

A
THREAD
B
THREAD
C
THREAD
Y
Hex
C2
Hex
M M1 M7 I I1 J4 D
DRILL
D1
DRILL
D2
DRILL
Part Number Torque N-m Working pressure
in Bar
5/16"-24UNF-2A 5/16"-24UNF-2A 5/16"-24UNF-2A 11.10 11.11 19.60 19.60 23.90 11.40 11.40 15.00 1.60 1.60 1.60 HT6803-02-02-02-NWO 8-9 345
3/8"-24UNF-2A 3/8"-24UNF-2A 3/8"-24UNF-2A 11.10 12.70 21.10 21.10 23.90 12.20 12.20 15.00 3.20 3.20 3.20 HT6803-03-03-03-NWO 11-12 345
7/16"-20UNF-2A 7/16"-20UNF-2A 7/16"-20UNF-2A 11.10 14.28 22.60 22.60 26.20 14.00 14.00 18.50 4.40 4.40 4.40 HT6803-04-04-04-NWO 15-16 345
1/2"-20UNF-2A 1/2"-20UNF-2A 1/2"-20UNF-2A 14.30 15.87 24.10 24.10 28.70 14.00 14.00 18.50 6.00 6.00 6.00 HT6803-05-05-05-NWO 19-21 345
9/16"-18UNF-2A 9/16"-18UNF-2A 9/16"-18UNF-2A 14.30 17.46 26.90 26.90 31.80 14.10 14.10 19.10 7.50 7.50 7.50 HT6803-06-06-06-NWO 24-28 345
3/4"-16UNF-2A 3/4"-16UNF-2A 3/4"-16UNF-2A 19.00 22.22 31.80 31.80 36.80 16.70 16.70 21.90 9.90 9.90 9.90 HT6803-08-08-08-NWO 49-53 310
7/8"-14UNF-2A 7/8"-14UNF-2A 7/8"-14UNF-2A 22.20 25.40 36.80 36.80 43.20 19.30 19.30 25.40 12.30 12.30 12.30 HT6803-10-10-10-NWO 77-85 240
1-1/16"-12UN-2A 1-1/16"-12UN-2A 1-1/16"-12UN-2A 27.00 31.75 42.20 42.20 49.30 21.90 21.90 29.00 15.50 15.50 15.50 HT6803-12-12-12-NWO 107-119 240
1-3/16"-12UN-2A 1-3/16"-12UN-2A 1-3/16"-12UN-2A 33.30 34.90 45.70 45.70 50.80 22.60 22.60 29.00 18.30 18.30 18.30 HT6803-14-14-14-NWO 127-140 210
1-5/16"-12UN-2A 1-5/16"-12UN-2A 1-5/16"-12UN-2A 33.30 38.10 46.00 46.00 52.10 23.10 23.10 29.00 21.40 21.40 21.40 HT6803-16-16-16-NWO 147-154 210
1-5/8"-12UN-2A 1-5/8"-12UN-2A 1-5/8"-12UN-2A 41.30 47.60 52.30 52.30 57.20 24.30 24.30 29.00 27.40 27.40 27.40 HT6803-20-20-20-NWO 172-181 170
1-7/8"-12UN-2A 1-7/8"-12UN-2A 1-7/8"-12UN-2A 47.60 53.98 59.20 59.20 60.70 27.50 27.50 29.00 33.30 33.30 33.30 HT6803-24-24-24-NWO 215-226 140
2-1/2"-12UN-2A 2-1/2"-12UN-2A 2-1/2"-12UN-2A 63.50 69.85 77.70 77.70 73.40 33.90 33.90 29.00 45.20 45.20 45.20 HT6803-32-32-32-NWO 332-350 105
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT6803-02-02-02-NWO
Steel ,Zinc nickel plated  ZiNi HT6803-02-02-02-NWO-ZiNi
Stainless Steel-SS316 Ti SST HT6803-02-02-02-NWO-SST
Stainless Steel-SS316  SS316 HT6803-02-02-02-NWO-SS
Stainless Steel-SS304 SS304 HT6803-02-02-02-NWO-S
