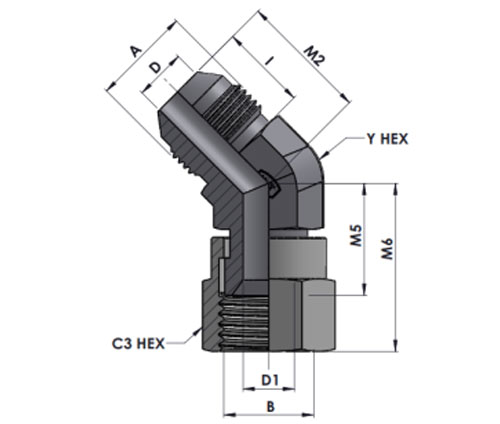

HT6502 MJ-FJS 45°


  • Description
  • Additional Information
Tube O.D. A
THREAD
B
THREAD
Y
Hex
C3
Hex
M2  M5  M6  I D
DRILL
D1
DRILL
Part Number Torque
N-m
Working pressure in Bar
1/8" 5/16"-24UNF-2A 5/16"-24UNF-2B 11.10 11.11 17.50 16.00 23.90 11.40 1.60 1.60 HT6502-02-02 8-9 345
1/4" 7/16"-20UNF-2A 7/16"-20UNF-2B 11.11 14.28 17.50 15.60 23.90 14.00 4.40 4.40 HT6502-04-04 15-16 345
3/8" 9/16"-18UNF-2A 9/16"-18UNF-2B 14.30 17.46 21.10 18.90 28.40 14.10 7.50 7.50 HT6502-06-06 24-28 345
1/2" 3/4"-16UNF-2A 3/4"-16UNF-2B 19.00 22.22 24.90 21.60 32.50 16.70 9.90 9.90 HT6502-08-08 49-53 310
5/8" 7/8"-14UNF-2A 7/8"-14UNF-2A 22.22 25.40 28.20 23.90 36.60 19.30 12.30 12.30 HT6502-10-10 77-85 240
3/4" 1-1/16"-12UN-2A 1-1/16"-12UN-2B 27.00 31.75 32.50 23.80 38.10 21.90 15.50 15.50 HT6502-12-12 107-119 240
1" 1-5/16"-12UN-2A 1-5/16"-12UN-2B 33.30 41.28 37.30 29.30 44.40 23.10 21.50 21.50 HT6502-16-16 147-154 210
1-1/4" 1-5/8"-12UN-2A 1-5/8"-12UN-2A 41.30 47.63 40.40 35.70 51.60 24.30 27.50 27.50 HT6502-20-20 172-181 170
1-1/2" 1-7/8"-12UN-2A 1-7/8"-12UN-2A 47.60 53.98 45.20 38.60 57.20 27.50 33.50 33.50 HT6502-24-24 215-226 140
2" 2-1/2"-12UN-2A 2-1/2"-12UN-2A 63.50 69.85 56.40 50.10 73.90 33.90 45.00 45.00 HT6502-32-32 332-350 105
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT6502-02-02
Steel ,Zinc nickel plated  ZiNi HT6502-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT6502-02-02-SST
Stainless Steel-SS316  SS316 HT6502-02-02-SS
Stainless Steel-SS304 SS304 HT6502-02-02-S
