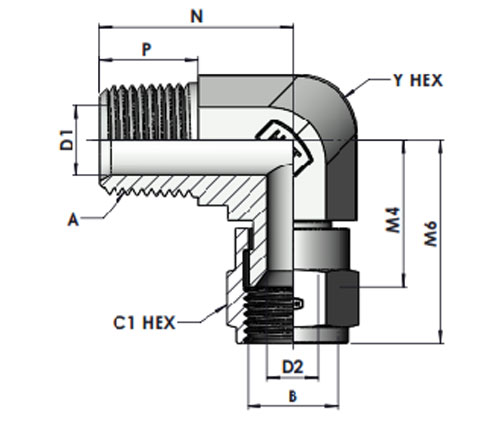

HT6501 MP-FJS 90°


  • Description
  • Additional Information
Tube O.D. A
THREAD
B
THREAD
Y
Hex
C1
Hex
N  M4  M6 P D1
DRILL
D2
DRILL
Part Number Torque
N-m
Working pressure in Bar
1/4" 1/4"-18NPTF-2 7/16"-20UNF-2A 14.27 14.27 27.69 20.32 29.21 9.70 7.10 4.40 HT6501-04-04 18-19 345
3/8" 3/8"-18NPTF-2 9/16"-18UNF-2A 19.05 17.47 31.00 23.10 32.70 14.20 10.30 7.50 HT6501-06-06 22-24 275
1/2" 1/2"-14NPTF-2 3/4"-16UNF-2A 22.22 22.22 37.30 27.69 38.60 14.20 13.40 9.90 HT6501-08-08 45-49 210
3/4" 3/4"-14NPTF-2 1-1/16"-12UN-2A 26.97 31.75 40.40 29.90 44.40 19.00 18.26 15.46 HT6501-12-12 65-72 170
1" 1"-11-1/2NPTF-2 1-5/16"-12UN-2A 33.32 38.10 50.00 35.56 50.80 23.90 23.80 21.10 HT6501-16-16 129-141 140
1-1/4" 1-1/4"-11-1/2NPTF-2 1-5/8"-12UN-2A 41.27 50.80 60.45 41.40 58.70 24.60 31.75 27.38 HT6501-20-20 160-176 80
1-1/2" 1-1/2"-11-1/2NPTF-2 1-7/8"-12UN-2A 47.62 57.15 67.00 47.50 65.80 25.40 38.10 33.30 HT6501-24-24 321-353 70
2" 2"-11-1/2NPTF-2 2-1/2"-12UN-2A 63.50 73.00 76.20 61.70 85.80 26.20 49.20 45.23 HT6501-24-24 420-462 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT6501-04-04
Steel ,Zinc nickel plated  ZiNi HT6501-04-04-ZiNi
Stainless Steel-SS316 Ti SST HT6501-04-04-SST
Stainless Steel-SS316  SS316 HT6501-04-04-SS
Stainless Steel-SS304 SS304 HT6501-04-04-S
