| Tube O.D. | A THREAD |
B THREAD |
C4 Hex |
L Length |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 7/16"-20UNF-2A | 7/16"-20UNF-2A | 17.46 | 30.00 | HT6425-04-04 | 18-20 | 345 |
| 3/8" | 9/16"-18UNF-2B | 9/16"-18UNF-2B | 20.64 | 32.00 | HT6425-06-06 | 29-33 | 275 |
| 1/2" | 3/4"-16UNF-2B | 3/4"-16UNF-2B | 26.97 | 36.00 | HT6425-08-08 | 49-53 | 210 |
| 5/8" | 7/8"-14UNF-2B | 7/8"-14UNF-2B | 28.57 | 40.60 | HT6425-10-10 | 59-64 | 210 |
| 3/4" | 1-1/16"-12UN-2B | 1-1/16"-12UN-2B | 34.92 | 46.70 | HT6425-12-12 | 93-102 | 170 |
| 1" | 1-5/16"-12UN-2B | 1-5/16"-12UN-2B | 41.27 | 46.70 | HT6425-16-16 | 122-134 | 170 |
CALL US : +91-22-4097 1900
Product
Assembly

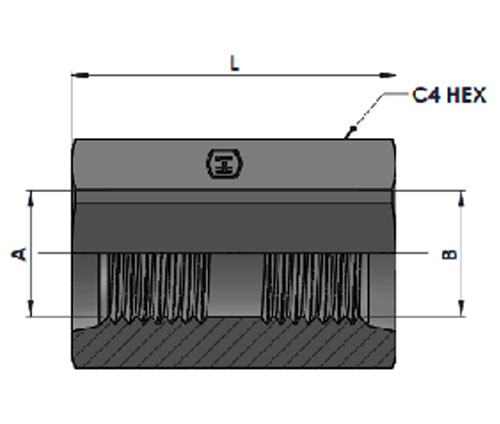

HT6425 FORB-FORB STRAIGHT
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6425-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HT6425-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6425-04-04-SST |
| Stainless Steel-SS316 | SS316 | HT6425-04-04-SS |
| Stainless Steel-SS304 | SS304 | HT6425-04-04-S |
