| Tube O.D | A THREAD |
B THREAD |
C Hex |
C1 Hex |
L Length |
L1 | I3 | D DRILL | D1 DRILL | Part Number | Working pressure in Bar |
| 1/4" | 7/16"-20UNF-2A | 7/16"-20UNF-2B | 14.27 | 14.27 | 25.90 | 33.20 | 9.14 | 4.40 | 4.40 | HT6402-04-04-O | 345 |
| 3/8" | 9/16"-18UNF-2A | 9/16"-18UNF-2B | 17.46 | 17.46 | 29.20 | 38.70 | 9.93 | 7.50 | 7.50 | HT6402-06-06-O | 345 |
| 1/2" | 3/4"-16UNF-2A | 9/16"-18UNF-2B | 22.22 | 17.46 | 31.20 | 40.70 | 11.13 | 9.90 | 7.50 | HT6402-08-06-O | 310 |
| 1/2" | 3/4"-16UNF-2A | 3/4"-16UNF-2B | 22.22 | 22.22 | 32.50 | 43.30 | 11.13 | 9.90 | 9.90 | HT6402-08-08-O | 310 |
| 5/8" | 7/8"-14UNF-2A | 7/8"-14UNF-2B | 25.40 | 25.40 | 36.30 | 47.70 | 12.70 | 12.30 | 9.90 | HT6402-10-10-O | 240 |
| 3/4" | 1-1/16"-12UN-2A | 1-1/16"-12UN-2B | 31.75 | 31.75 | 41.40 | 54.60 | 15.09 | 15.50 | 15.50 | HT6402-12-12-O | 240 |
| 1" | 1-5/16"-12UN-2A | 1-5/16"-12UN-2B | 38.10 | 38.10 | 43.70 | 57.60 | 15.09 | 21.50 | 21.50 | HT6402-16-16-O | 210 |
CALL US : +91-22-4097 1900
Product
Assembly

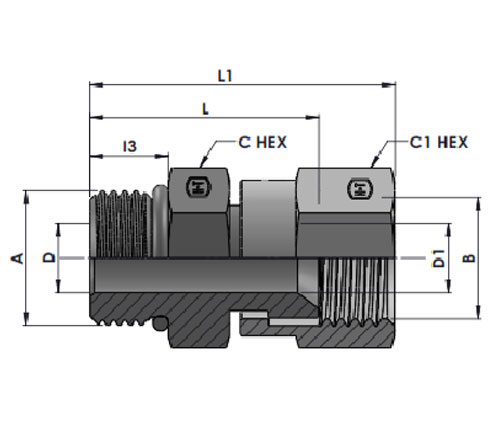

HT6402 MORB-FJS STRAIGHT
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6402-04-04-O | |
| Steel ,Zinc nickel plated | ZiNi | HT6402-04-04-O-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6402-04-04-O-SST |
| Stainless Steel-SS316 | SS316 | HT6402-04-04-O-SS |
| Stainless Steel-SS304 | SS304 | HT6402-04-04-O-S |
