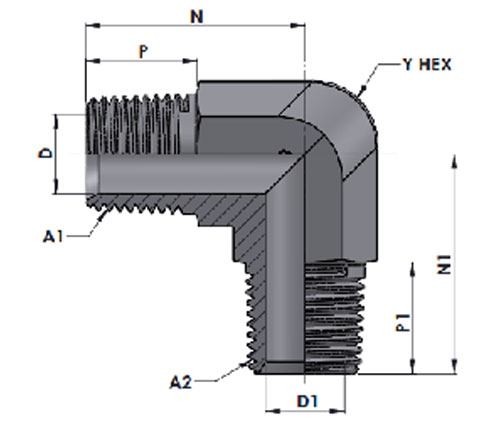

HY-TECH USA INC| A1 THREAD |
A2 THREAD |
Y Hex |
N | P | N1 | P1 | D | D1 | Part Number | Torque N-m | Working pressure in Bar |
| 1/8"-27NPTF-2 | 1/8"-27NPTF-2 | 11.11 | 19.80 | 9.70 | 19.80 | 9.70 | 4.80 | 4.80 | HT5500-02-02 | 12-13 | 345 |
| 1/4"-18NPTF-2 | 1/4"-18NPTF-2 | 14.28 | 27.70 | 14.20 | 27.70 | 14.20 | 7.10 | 7.10 | HT5500-04-04 | 18-19 | 345 |
| 3/8"-18NPTF-2 | 3/8"-18NPTF-2 | 19.05 | 31.00 | 14.20 | 31.00 | 14.20 | 10.30 | 10.30 | HT5500-06-06 | 22-24 | 275 |
| 1/2"-14NPTF-2 | 1/2"-14NPTF-2 | 22.22 | 37.30 | 19.00 | 37.30 | 19.00 | 13.50 | 13.50 | HT5500-08-08 | 45-49 | 210 |
| 3/4"-14NPTF-2 | 1/2"-14NPTF-2 | 27.00 | 40.40 | 19.00 | 40.40 | 19.00 | 8.00 | 13.50 | HT5500-12-08 | 22-24 | 210 |
| 3/4"-14NPTF-2 | 3/4"-14NPTF-2 | 27.00 | 40.40 | 19.00 | 40.40 | 19.00 | 18.30 | 18.30 | HT5500-12-12 | 65-72 | 170 |
| 1"-11-1/2NPTF-2 | 1"-11-1/2NPTF-2 | 33.32 | 50.00 | 23.90 | 50.00 | 23.90 | 23.80 | 23.80 | HT5500-16-16 | 129-141 | 140 |
| 1-1/4"-11-1/2NPTF-2 | 1-1/4"-11-1/2NPTF-2 | 41.27 | 60.45 | 24.60 | 60.45 | 24.60 | 31.75 | 31.75 | HT5500-20-20 | 160-176 | 80 |
| 1-1/2"-11-1/2NPTF-2 | 1-1/2"-11-1/2NPTF-2 | 47.62 | 67.00 | 24.40 | 67.00 | 24.40 | 38.00 | 38.00 | HT5500-24-24 | 321-353 | 70 |
| 2"-11-1/2NPTF-2 | 2"-11-1/2NPTF-2 | 63.50 | 76.20 | 26.20 | 76.20 | 26.20 | 49.00 | 49.00 | HT5500-32-32 | 420-462 | 70 |
Product
Assembly
HT5500 MP-MP 90°
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT5500-02-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT5500-02-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT5500-02-02-SST |
| Stainless Steel-SS316 | SS316 | HT5500-02-02-SS |
| Stainless Steel-SS304 | SS304 | HT5500-02-02-S |
