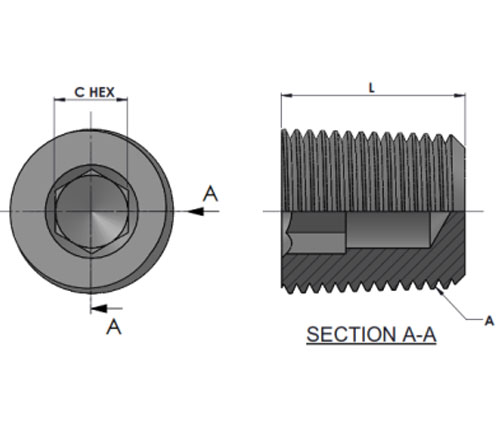

| A THREAD |
C Hex |
RD | L | Part Number | Weight | Torque N-m | Working pressure in Bar |
| 1/8"-27NPTF-2 | 4.76 | 11.11 | 7.62 | HT5406-HP-02 | 0.006 | 12-13 | 345 |
| 1/4"-18NPTF-2 | 6.35 | 14.28 | 11.68 | HT5406-HP-04 | 0.016 | 18-19 | 345 |
| 3/8"-18NPTF-2 | 7.95 | 17.46 | 11.68 | HT5406-HP-06 | 0.024 | 22-24 | 275 |
| 1/2"-14NPTF-2 | 9.53 | 22.22 | 15.49 | HT5406-HP-08 | 0.052 | 45-49 | 210 |
| 3/4"-14NPTF-2 | 14.30 | 26.98 | 15.75 | HT5406-HP-12 | 0.078 | 65-72 | 170 |
| 1"-11-1/2NPTF-2 | 15.88 | 34.92 | 19.56 | HT5406-HP-16 | 0.162 | 129-141 | 140 |
| 1-1/4"-11-1/2NPTF-2 | 19.05 | 42.86 | 21.08 | HT5406-HP-20 | 0.263 | 160-176 | 80 |
| 1-1/2"-11-1/2NPTF-2 | 25.40 | 49.21 | 21.08 | HT5406-HP-24 | 0.346 | 321-353 | 70 |
| 2"-11-1/2NPTF-2 | 25.40 | 61.91 | 21.08 | HT5406-HP-32 | 0.548 | 420-462 | 70 |
CALL US : +91-22-4097 1900
Product
Assembly
HT5406-HP HOLLOW HEX PIPE PLUG
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT5406-HP-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT5406-HP-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT5406-HP-02-SST |
| Stainless Steel-SS316 | SS316 | HT5406-HP-02-SS |
| Stainless Steel-SS304 | SS304 | HT5406-HP-02-S |
