HY-Tech
  • JIC Fittings
  • Straight
  • HT5405
Product
HY-Tech Engineers
Assembly
HY-Tech Engineers

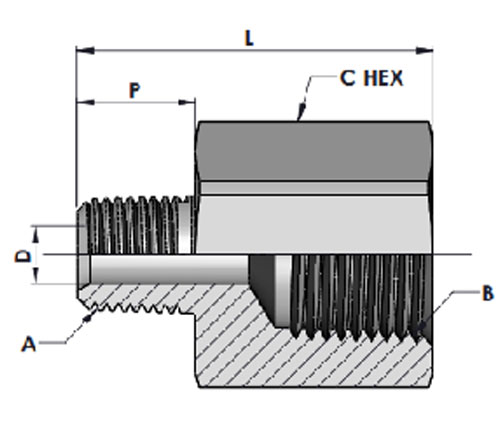

HT5405 MP-FP STRAIGHT EXP.


  • Description
  • Additional Information
A
THREAD
B
THREAD
C
Hex
L P D Part Number Torque N-m Working pressure in Bar
1/4"-18NPTF-2 1/8"-27NPTF-2 19.05 35.30 14.20 7.00 HT5405-04-04 18-19 345
1/4"-18NPTF-2 3/8"-18NPTF-2 22.22 36.60 12.20 7.00 HT5405-04-06 18-19 275
1/4"-18NPTF-2 1/2"-14NPTF-2 28.58 42.70 14.20 7.00 HT5405-04-08 18-19 210
3/8"-18NPTF-2 3/8"-18NPTF-2 22.22 36.60 14.20 10.30 HT5405-06-06 22-24 275
1/2"-14NPTF-2 1/2"-14NPTF-2 28.58 47.50 19.00 13.50 HT5405-08-08 45-49 210
3/4"-14NPTF-2 3/4"-14NPTF-2 34.92 46.00 19.00 18.26 HT5405-12-12 65-72 170
1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 41.27 60.20 23.90 23.80 HT5405-16-16 129-141 140
1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 50.80 63.20 24.60 31.75 HT5404-20-20 160-176 80
1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 60.32 64.30 25.40 38.10 HT5404-24-24 321-353 70
2"-11-1/2NPTF-2 2"-11-1/2NPTF-2 73.00 67.50 26.20 49.20 HT5404-32-32 420-462 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT5405-04-04
Steel ,Zinc nickel plated  ZiNi HT5405-04-04-ZiNi
Stainless Steel-SS316 Ti SST HT5405-04-04-SST
Stainless Steel-SS316  SS316 HT5405-04-04-SS
Stainless Steel-SS304 SS304 HT5405-04-04-S
