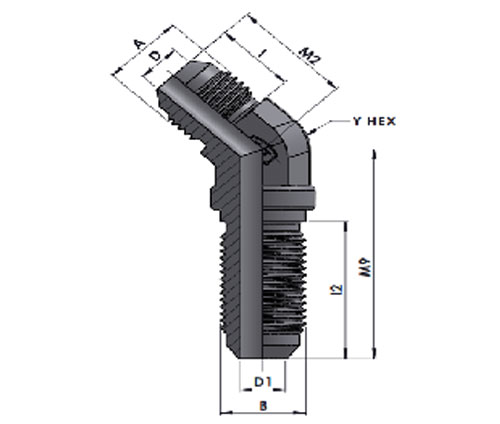

HT2702 MJ-MJ BULKHEAD 45°


  • Description
  • Additional Information
Tube O.D. A
THREAD
B
THREAD
Y
Hex
M2 M9 I I2 D
DRILL
D1
DRILL
Part Number Torque
N-m
Working pressure
sin Bar
1/8" 5/16"-24UNF-2A 5/16"-24UNF-2A 11.10 17.50 36.10 11.40 23.40 1.60 1.60 HT2702-02-02 8-9 345
3/16" 3/8"-24UNF-2A 3/8"-24UNF-2A 11.10 17.50 36.10 12.20 23.40 3.20 3.20 HT2702-03-03 11-12 345
1/4" 7/16"-20UNF-2A 7/16"-20UNF-2A 11.10 18.30 38.90 14.00 25.90 4.40 4.40 HT2702-04-04 15-16 345
5/16" 1/2"-20UNF-2A 1/2"-20UNF-2A 14.30 19.60 42.20 14.00 25.90 6.00 6.00 HT2702-05-05 19-21 345
3/8" 9/16"-18UNF-2A 9/16"-18UNF-2A 14.30 21.10 42.40 14.10 27.70 7.50 7.50 HT2702-06-06 24-28 345
1/2" 3/4"-16UNF-2A 3/4"-16UNF-2A 19.00 24.90 49.30 16.70 31.80 9.90 9.90 HT2702-08-08 49-53 310
5/8" 7/8"-14UNF-2A 7/8"-14UNF-2A 22.20 28.20 55.10 19.30 35.30 12.30 12.30 HT2702-10-10 77-85 240
3/4" 1-1/16"-12UN-2A 1-1/16"-12UN-2A 27.00 32.50 62.00 21.90 39.60 15.50 15.50 HT2702-12-12 107-119 240
7/8" 1-3/16"-12UN-2A 1-3/16"-12UN-2A 33.30 36.80 63.50 22.60 39.60 18.30 18.30 HT2702-14-14 127-140 210
1" 1-5/16"-12UN-2A 1-5/16"-12UN-2A 33.30 37.30 65.00 23.10 39.60 21.50 21.50 HT2702-16-16 147-154 210
1-1/4" 1-5/8"-12UN-2A 1-5/8"-12UN-2A 41.30 40.40 67.30 24.30 40.90 27.50 27.50 HT2702-20-20 172-181 170
1-1/2" 1-7/8"-12UN-2A 1-7/8"-12UN-2A 47.60 45.20 67.80 27.50 41.10 33.50 33.50 HT2702-24-24 215-226 140
2" 2-1/2"-12UN-2A 2-1/2"-12UN-2A 63.50 56.40 73.90 33.90 48.50 45.20 45.20 HT2702-32-32 332-350 105
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT2702-02-02
Steel ,Zinc nickel plated  ZiNi HT2702-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT2702-02-02-SST
Stainless Steel-SS316  SS316 HT2702-02-02-SS
Stainless Steel-SS304 SS304 HT2702-02-02-S
