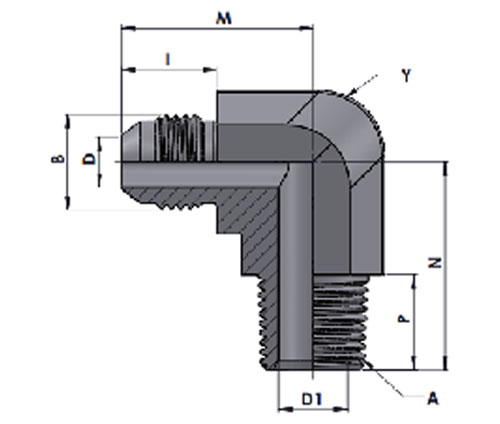

| Tube O.D. | B THREAD |
A THREAD |
Y Hex |
M | N | I | P | D DRILL |
D 1 DRILL |
Part Number | Working pressurein Bar |
| 1/4" | 7/16"-20UNF-2A | 1/8"-27NPTF-2 | 11.11 | 22.60 | 19.80 | 14.00 | 9.70 | 4.40 | 4.80 | HT2501-04-02 | 345 |
| 1/4" | 7/16"-20UNF-2A | 1/4"-18NPTF-2 | 14.30 | 26.90 | 27.70 | 14.00 | 14.20 | 4.40 | 7.00 | HT2501-04-04 | 275 |
| 3/8" | 9/16"-18UNF-2A | 3/8"-18NPTF-2 | 19.00 | 28.50 | 31.00 | 14.10 | 14.20 | 7.50 | 10.30 | HT2501-06-06 | 210 |
| 1/2" | 3/4"-16UNF-2A | 1/2"-14NPTF-2 | 22.22 | 33.80 | 37.40 | 16.70 | 19.00 | 9.90 | 13.50 | HT2501-08-08 | 210 |
| 3/8" | 9/16"-18UNF-2A | 1/4"-18NPTF-2 | 14.30 | 26.90 | 27.70 | 14.10 | 14.20 | 7.50 | 7.00 | HT2501-06-04 | 345 |
| 3/4" | 1-1/16"-12UN-2A | 3/4"-14NPTF-2 | 27.00 | 42.20 | 40.40 | 21.90 | 19.00 | 15.50 | 18.30 | HT2501-12-12 | 170 |
CALL US : +91-22-4097 1900
Product
Assembly
HT2501 MJ-MP 90°
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT2501-04-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT2501-04-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT2501-04-02-SST |
| Stainless Steel-SS316 | SS316 | HT2501-04-02-SS |
| Stainless Steel-SS304 | SS304 | HT2501-04-02-S |
