HT1503 MP-FPS 45°


  • Description
  • Additional Information

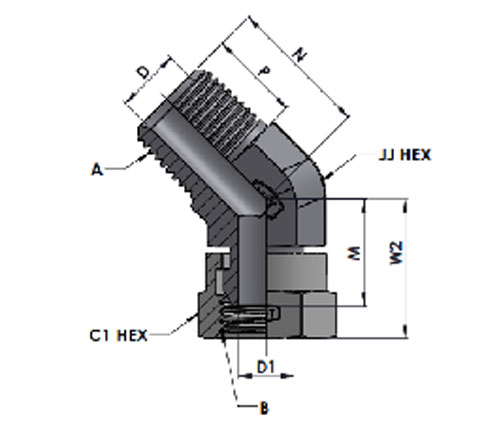

Tube O.D. A
THREAD
B
THREAD
JJ Hex  N Length P
Length
D
DRILL
M
Length
W2 Length D1 DRILL C1
Hex
Part Number Torque
N-m
Working pressure in Bar
1/4" 1/8"-27NPTF-2 1/8"-27NPSM 11.11 18.50 9.70 4.80 17.80 22.40 3.30 14.28 HT1503-02-02 12-13 345
3/8" 1/4"-18NPTF-2 1/4"-18NPSM 14.30 25.40 14.20 7.10 22.35 27.00 5.60 17.46 HT1503-04-04 18-19 345
1/2" 3/8"-18NPTF-2 3/8"-18NPSM 19.00 28.40 14.20 10.30 25.15 31.20 8.40 22.23 HT1503-06-06 22-24 275
5/8" 1/2"-14NPTF-2 1/2"-14NPSM 22.22 36.60 19.00 13.50 28.20 32.50 11.90 25.40 HT1503-08-08 45-49 210
3/4" 3/4"-14NPTF-2 3/4"-14NPSM 27.00 39.60 19.00 18.30 33.00 36.10 16.50 31.75 HT1503-12-12 65-72 170
1" 1"-11-1/2NPTF-2 1"-11-1/2NPSM 38.10 39.60 23.90 21.10 39.60 38.40 21.10 38.10 HT1503-16-16 129-141 140
1-1/4" 1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPSM 47.63 475.00 24.60 28.40 47.00 46.00 28.40 47.63 HT1503-20-20 160-176 80
1-1/2" 1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPSM 53.98 51.50 25.40 34.50 52.10 49.30 34.50 53.98 HT1503-24-24 321-353 70
2" 2"-11-1/2NPTF-2 2"-11-1/2NPSM 66.68 58.70 26.20 45.50 61.00 52.30 45.50 66.68 HT1503-32-32 420-462 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT1503-02-02
Steel ,Zinc nickel plated  ZiNi HT1503-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT1503-02-02-SST
Stainless Steel-SS316  SS316 HT1503-02-02-SS
Stainless Steel-SS304 SS304 HT1503-02-02-S
