HY-TECH USA INC| Tube O.D. | A THREAD |
A1 THREAD |
C Hex |
L1 Length |
P1 Length |
K1 | D DRILL |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 1/8"-27NPTF-2 | 1/8"-27NPSM | 14.28 | 23.90 | 11.70 | 3.00 | 2.80 | HT1405-02-02 | 12-13 | 345 |
| 3/8" | 1/4"-18NPTF-2 | 1/4"-18NPSM | 17.46 | 31.20 | 12.70 | 4.30 | 5.80/5.30 | HT1405-04-04 | 18-19 | 345 |
| 1/2" | 3/8"-18NPTF-2 | 3/8"-18NPSM | 22.22 | 33.30 | 17.30 | 4.80 | 9.10/8.10 | HT1405-06-06 | 22-24 | 275 |
| 5/8" | 1/2"-14NPTF-2 | 1/2"-14NPSM | 25.40 | 39.60 | 19.00 | 6.60 | 12.20/11.20 | HT1405-08-08 | 45-49 | 210 |
| 3/4" | 3/4"-14NPTF-2 | 3/4"-14NPSM | 31.75 | 41.10 | 17.50 | 8.40 | 16.80/15.20 | HT1405-10-10 | 65-72 | 170 |
| 1" | 1"-11-1/2NPTF-2 | 1"-11-1/2NPSM | 38.10 | 50.80 | 22.50 | 8.40 | 22.40/19.80 | HT1405-12-12 | 129-141 | 140 |
| 1-1/4" | 1-1/4"-11-1/2NPTF-2 | 1-1/4"-11-1/2NPSM | 47.63 | 52.30 | 29.50 | 10.20 | 25.70 | HT1405-16-16 | 160-176 | 80 |
| 1-1/2" | 1-1/2"-11-1/2NPTF-2 | 1-1/2"-11-1/2NPSM | 53.98 | 55.40 | 29.50 | 10.20 | 31.80 | HT1405-20-20 | 321-353 | 70 |
| 2" | 2"-11-1/2NPTF-2 | 2"-11-1/2NPSM | 66.68 | 68.10 | 30.00 | 10.20 | 43.70 | HT1405-24-24 | 420-462 | 70 |
Product
Assembly

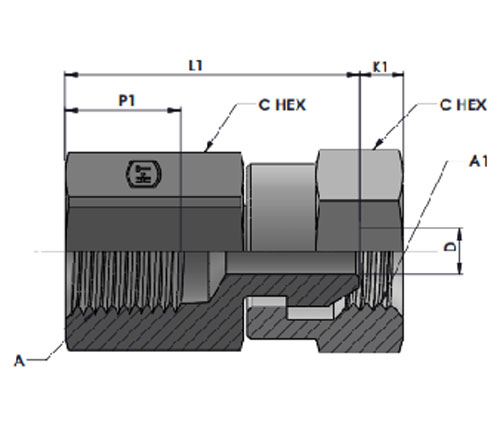

HT1405 FP-FPS Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT1405-02-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT1405-02-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT1405-02-02-SST |
| Stainless Steel-SS316 | SS316 | HT1405-02-02-SS |
| Stainless Steel-SS304 | SS304 | HT1405-02-02-S |
